Flexible Platform Topologies

• 1-way P25 Trunking Coverage Extension for P25 Paging.
• Upgradable to 2-way Trunking. Re-uses the 1-way Paging equipment. (GPS Locked frequency & Time reference.)
• Base Station Radio R0x has independent and configurable Receiver band Transmitter frequency bands.
• Conventional : dynamic mixed mode P25 digital conventional or analog conventional
• Data : Dynamic assignment between voice and SNDCP data frames
• Linear option supports

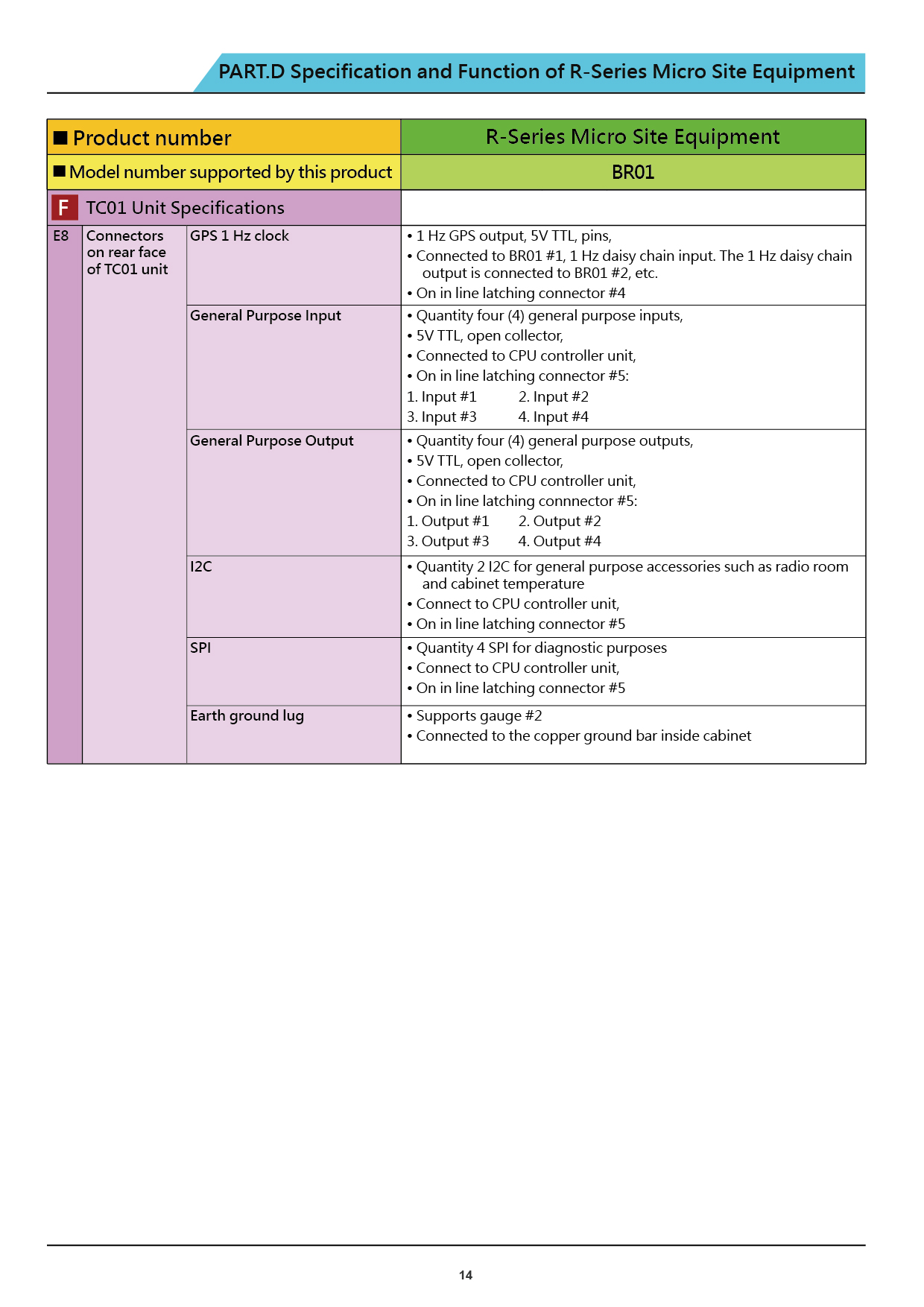

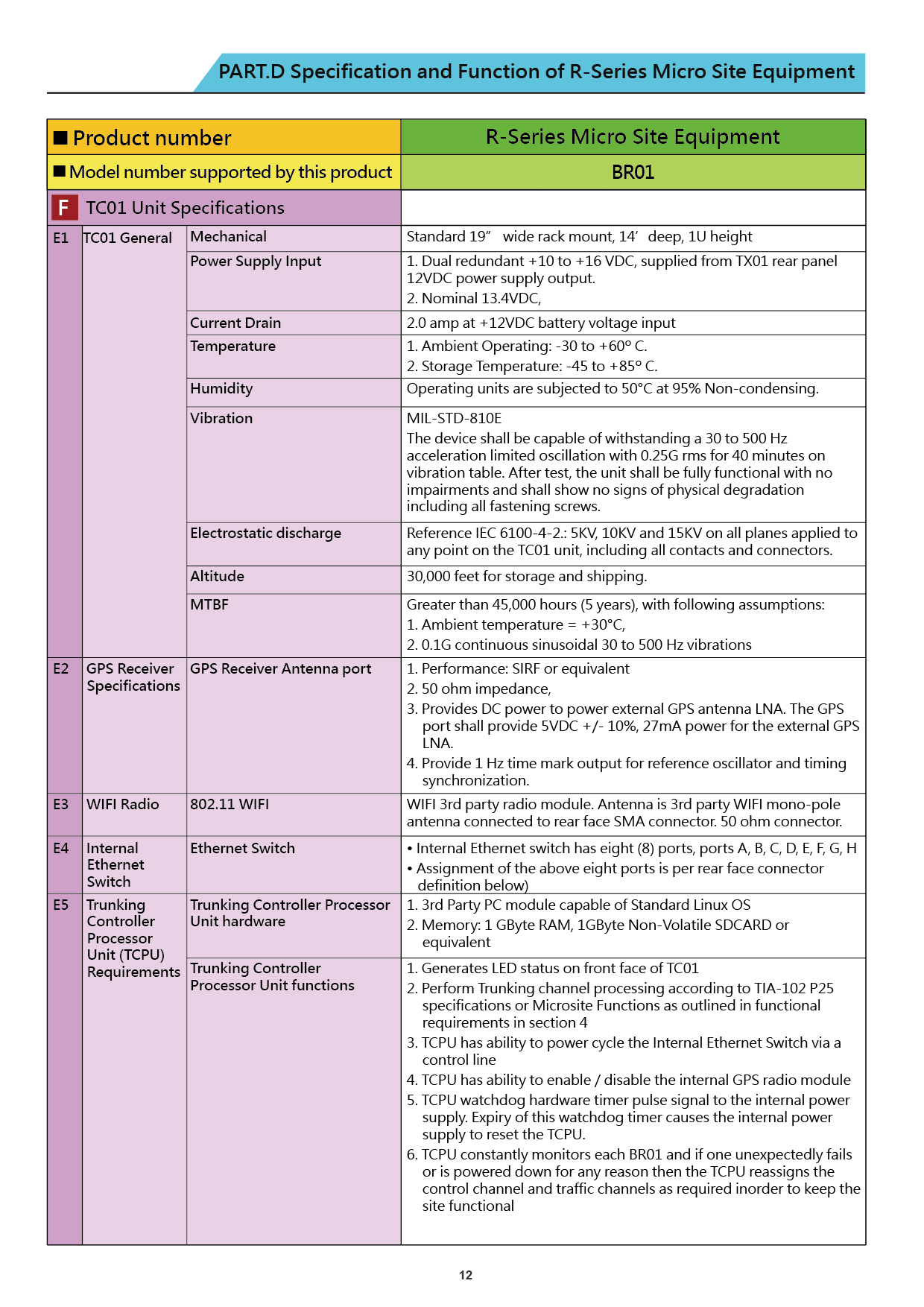

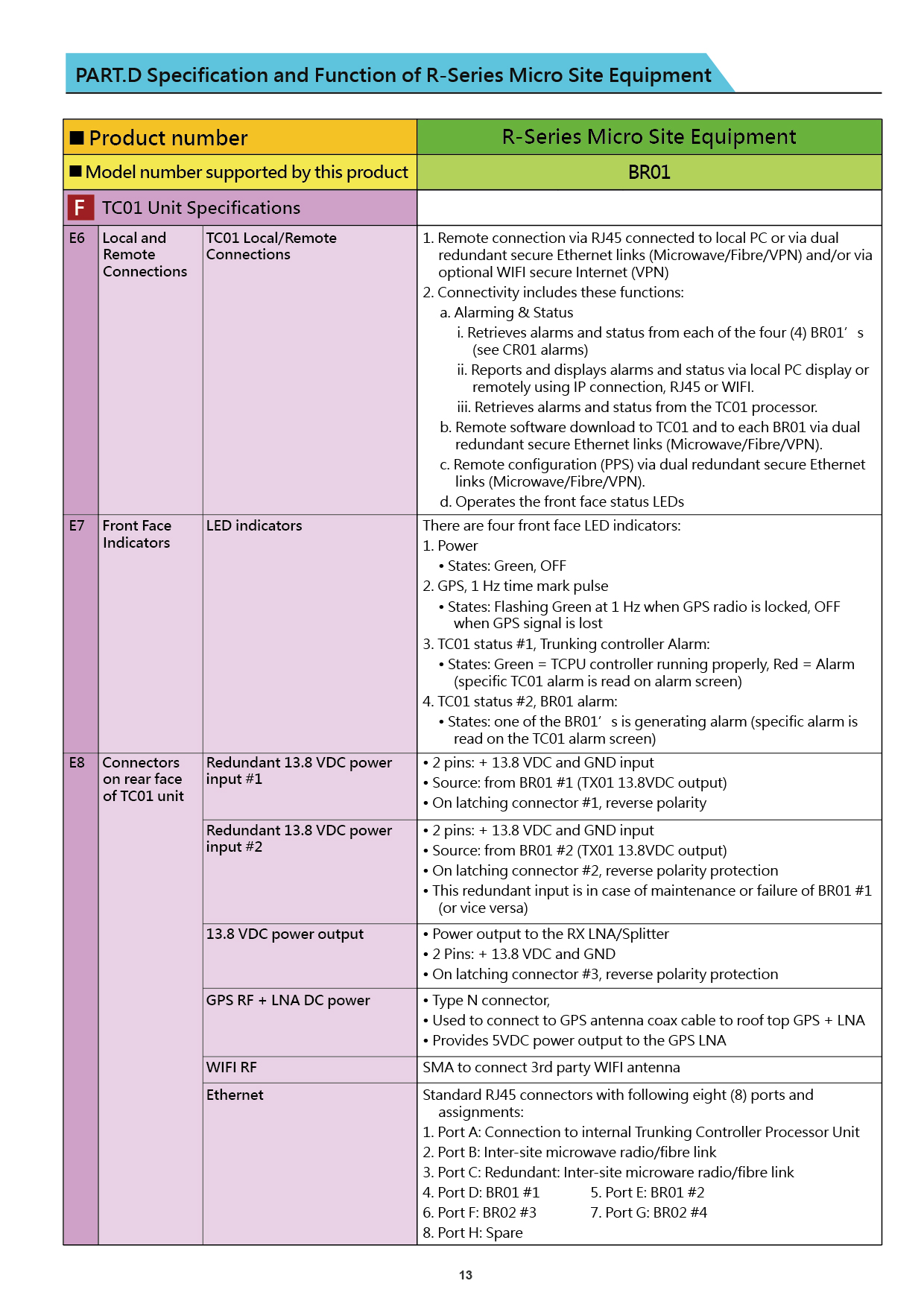

Standard P25 Standard ISSI IP linking using TC01

• Interface to standard dispatch and existing radio systems.
• Dual redundant Microwave radio and / or / Fibre etc.
• Software upgrade to support ISSI standard 2-way site configuration

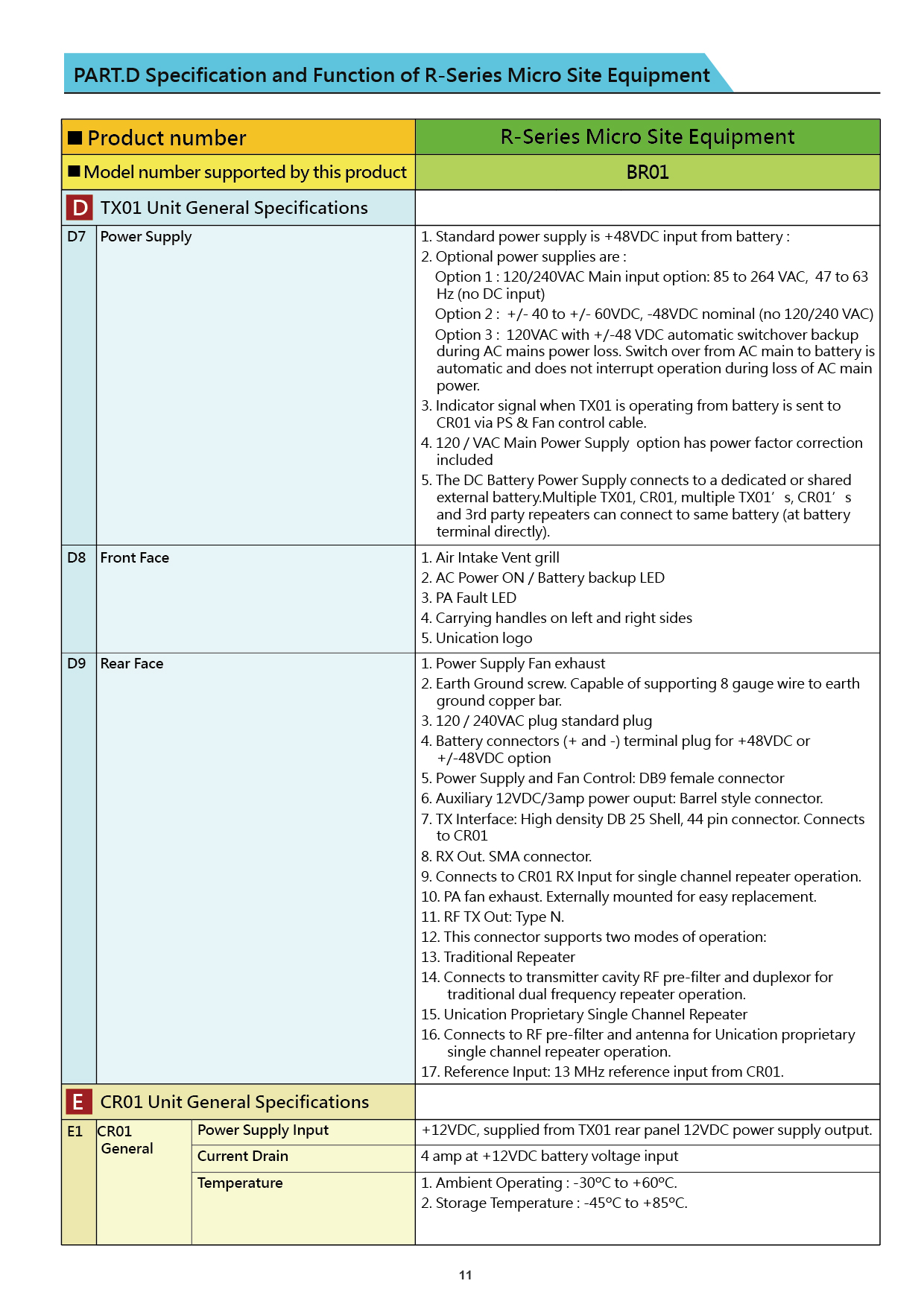

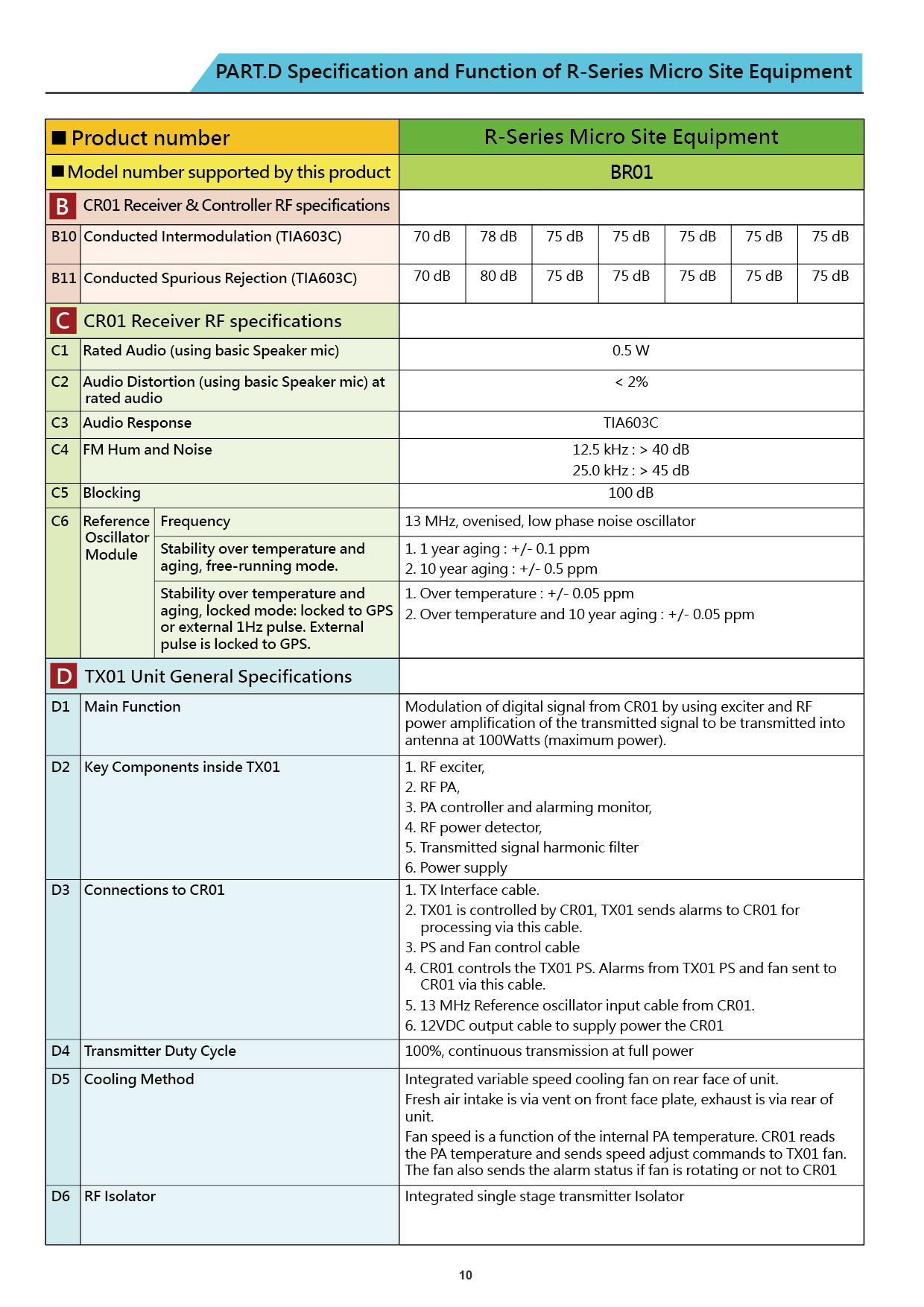

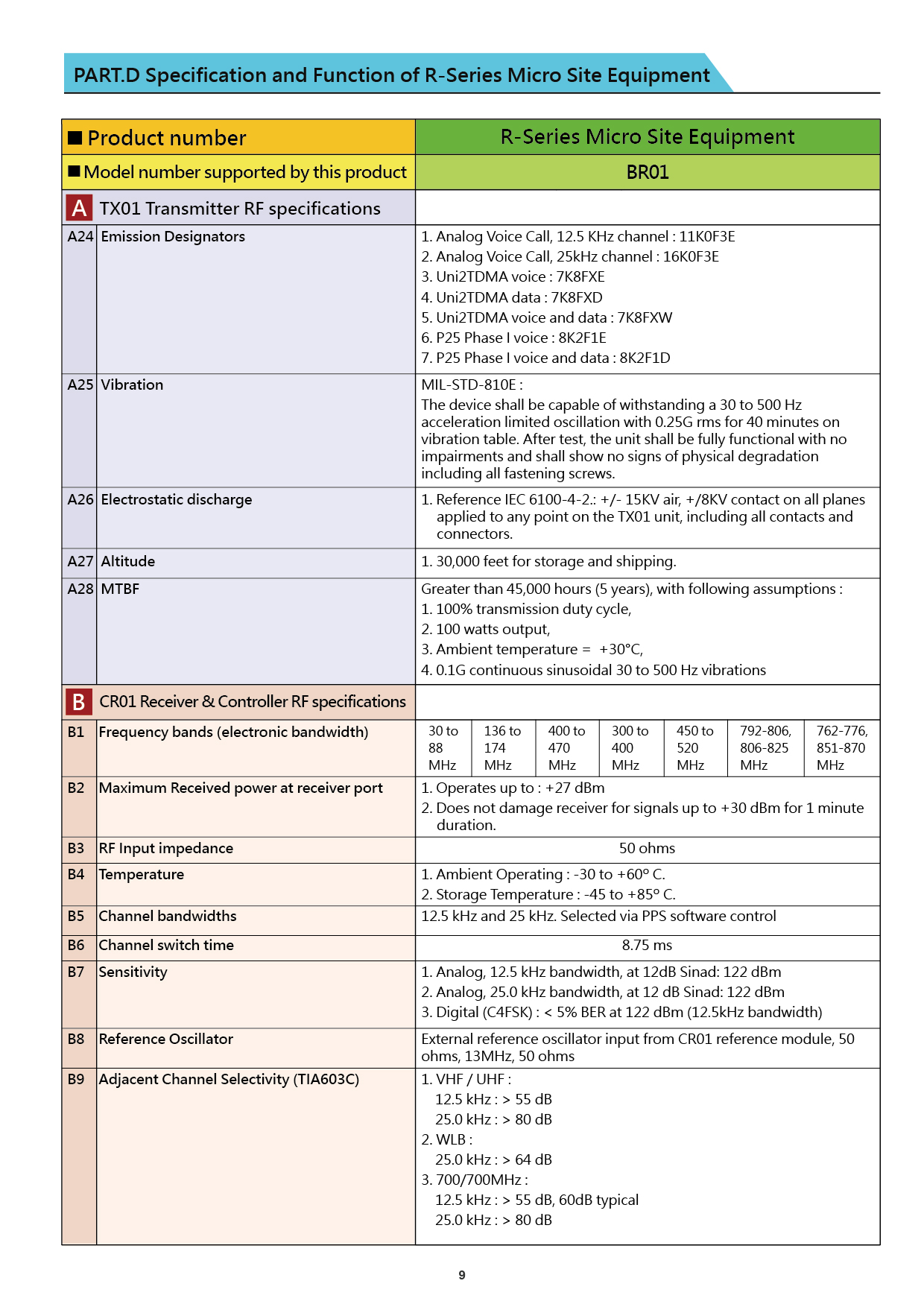

Inbound P25 Receiver Diversity using CR01

• CR01 receivers installed in problem areas (no fan, can be in ‘dusty’ environment).
• Install DCS “Diversity combiner software” at main repeater BR01site.
• Rugged metal housing, no fan, 12VDC operation (wall adapter, standard UPS), wide temperature operating range -30 to 60C.
• No FCC license required for the CR01 site, can use low cost sites.
• GPS Synchronization and packet time stamping.
• Connects to BR01 repeater site diversity combiner DC01 unit.
• Multiple connection methods to DC01.
• Wifi, LTE, Ethernet, BR01 RF linking, 4wire, satellite.
